A/C KIT ELECTRIC 12 VOLTS HEAT & COOL 404 WITH 2 AUXILIARY DEFROSTER VENT

UNIVERSAL A/C KIT FOR: CLASSIC CARS, HOT RODS, ANTIQUE CARS, TRUCKS, AND MORE. International buyers, including Puerto Rico, Alaska, and Hawaii, please contact for quote before buying.

• Universal Under-Dash Evaporator Unit Model: E-404-000 H/C. 4 CHROME VENTS + 2 AUXILIARY DEFROSTER VENTS Heat & Cool 32 pass 4way all aluminum coil Expansion valve 1.5 Ton Thermostat and rotative 3-speed blower switch 12 VOLTS DOUBLE SHAFT BLOWER MOTOR Mounting bracket drain hose and T included 12,700 BTU capacity 359 CFM DIMENSIONS: L15¾" X D12" X H6" 4 CHROME STARS LOUVERS 5' FT FLEX DUCT 2"ID + 2 SHUT-OFF VENTS
• This auxiliary system improves visibility by directing airflow to the windshield, helping to reduce fog and moisture. Please note that installation requires cutting openings in the dashboard to properly mount the vents. Once installed, the vents can be manually opened and closed, allowing you to control airflow as needed for maximum comfort and effectiveness.
• Compressor MODEL: CE20CC-12 Compressor ⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️ 12 VOLTS DC WITH ELECTRICAL HARNESS Model: CE20CC-12 Compressor Model: CE20CC-12 Compressor type Integrated electric scroll compressor Suitable refrigerant R134a Compressor displacement 20cc/r Oil injection quantity RL68H(POE)/120ml(or according to customer requirements) ✅ Recommended Alternator 120 AMP IDLE SPEED ✅

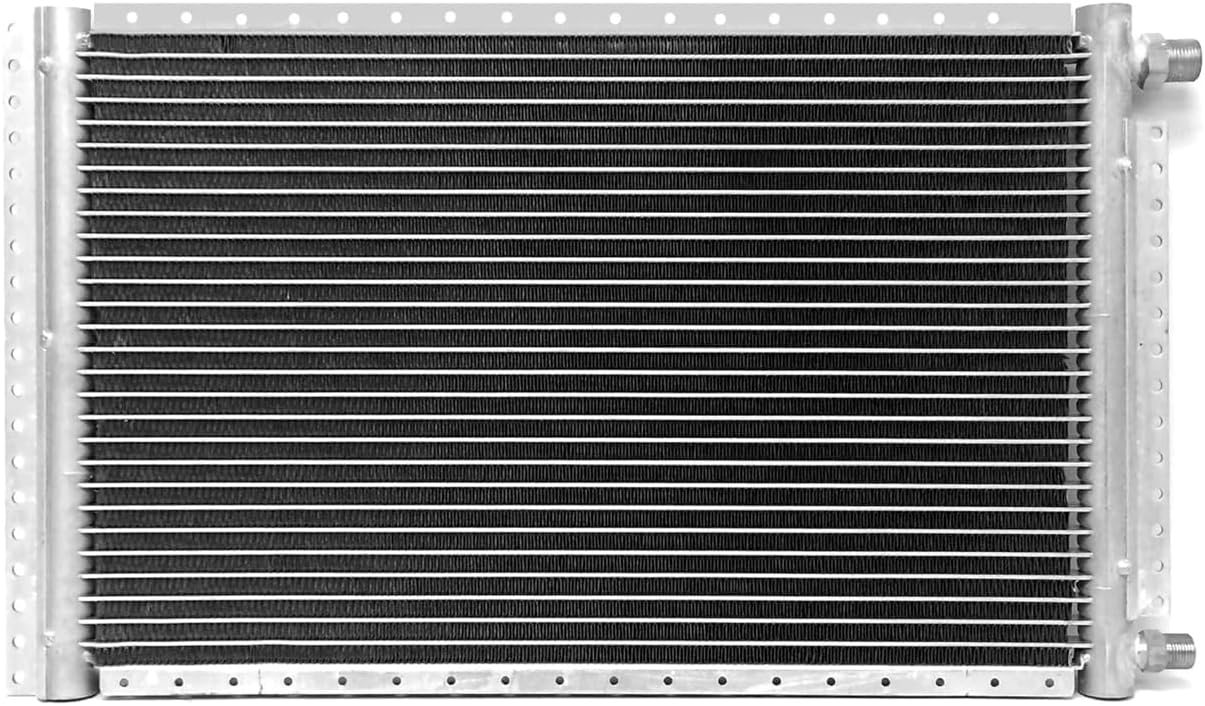

• Condenser Model: CPF142018 PARALLEL FLOW (micro-tube technology) 14"H X 20"L .70"(18mm) W 4 Rails Aluminum #8 O-ring IN #6 O-ring OUT
• Hoses Set Model: H6516, H81332, H1012 A/C HOSE #6 5/16 = 6' feet #8 13/32 = 4' feet #10 1/2 = 5' feet (NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)
• Fitting Set Model: FTSET404 1-N° 10 90° O-ring Fitting w/R134a Serv Port 1- N° 8 90° O-ring Fitting w/R134a Serv Port 1- N° 10 Straight O-ring Fitting 1- N° 10 90° O-ring Fitting 2- N° 6 90° O-ring Fitting 1- N° 8 90° O-ring Fitting 2- N° 6 Straight O-ring Fitting Set include metal FERRULES and CLAMPS If you decided use a/c clamps, you don't need special crimper tool (YES... We include both systems) O-ring set is included
• Filter Drier Model: FD100A ALUMINUM Model: FD100B BLACK 2½"Diameter 7½"Hight Sight Glass #6 ⅜ X ⅜ O-ring connections both sides (HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED) (NOTE: Aluminum or Black) if you have a preference let us know leaving a message
• Condenser Fan Model: CF1212 12" Diameter 12 Volts 80W 6 AMP Reversible Puller or Pusher 4 Mounting Brackets included
• Electrical Harness all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or trucks applications. for special Lengths applications please contact us extra charges maybe apply
• We include full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle. NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc
